Working with Logic Synthesis Tools

Available Chromosomal Architectures

The chromosome architecture of your logic circuits include the head size, the number of genes and the linking function. You choose these parameters in the Settings Panel -> General Settings.

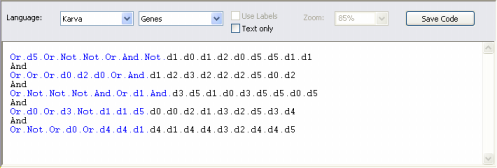

The Head Size determines the complexity of each term in your logic circuit. In the heads of genes, the GeneXproTools learning algorithm tries out different arrangements of functions and terminals (variables and constants) in order to model your data. The plasticity of this architecture allows the discovery of a virtually infinite number of logic circuits of different sizes and shapes which are afterwards tested and selected during the learning process. The heads of genes are shown in blue in the compact, linear representation of your models in the Model Panel.

More specifically, the head size h of each gene determines the maximum width w and maximum depth d of the sub-expression trees encoded in the gene, which are given by the formulas:

w = (n - 1) * h + 1

d = ((h + 1) / m) * ((m + 1) / 2)

where m is minimum arity and n is maximum arity.

Thus, the GeneXproTools learning algorithm selects its logic circuits between these extreme cases, fine-tuning the ideal size and shape during the evolutionary process without human intervention.

The number of genes per chromosome is also an important parameter. It will determine the number of (complex) terms in your logic circuits as each gene codes for a different parse tree (sub-expression tree or sub-ET). Theoretically, one could just use a huge single gene in order to evolve very complex circuits. But the partition of the chromosome into simpler, more manageable units gives an edge to the learning process and more efficient and elegant circuits can be discovered using multigenic chromosomes.

Whenever the number of genes is greater than one, you must also choose a suitable linking function for linking the logical expressions encoded in each gene. GeneXproTools 4.0 allows you to choose And, Or, Nand, Nor, Xor, Nxor, Less Than, Greater Than, Less Or Equal, or Greater Or Equal to link the sub-ETs. As expected, Or (and obviously And) works very well for virtually all problems but sometimes one of the other linkers could be useful for searching different solution spaces and finding a very good, albeit unexpected circuit.
