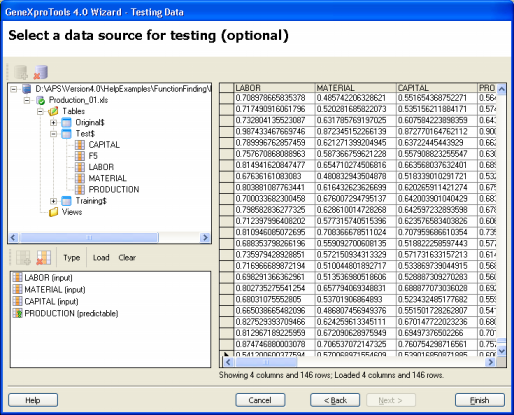

The Testing Data Window gives access to the following
settings and features:
Add Data Source Icon
Opens the Data Source Dialog Box.
Remove Data Source Icon
Removes the data source.
Data Source Window
Shows the data source with its tables and columns. Columns and
entire tables can be dragged and dropped onto the Testing Data
Window below.
Add Column Icon
Adds a column selected from the Data Source Window above.
Remove Column Icon
Removes a selected column from the dataset.
Type Menu
Sets the type (input or predictable) of the selected column. You can
also set the type through the mouse right-click.
Load Button
Loads/shows the selected columns' contents.
Clear Button
Removes all the columns from the Testing Data Window.
Testing
Data Window
You prepare your testing data here by dragging and dropping the
columns with your variables from the Data Source Window. You can
also reorganize your dataset by moving a selected column up or down
with the mouse.
Testing
Data Table
Shows the loaded columns. GeneXproTools only shows 2048 columns in
the New Run Wizard, but obviously loads them all, and you can see
the exact number of loaded/shown columns on the status bar below.
Help Button
Opens the Help File.
Cancel Button
Cancels all the action on the creation of a new run.
Back Button
Takes you to the previous window of the New Run Wizard.
Next Button
Takes you to the next window of the New Run Wizard.
Finish Button
Opens the Save As dialog box to save the new run.
|
