Settings and Features

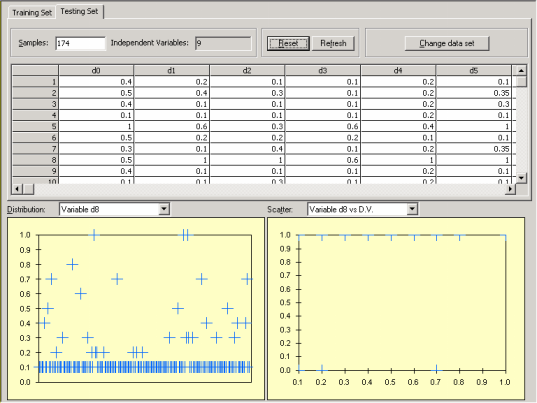

Testing Set Tab

The Testing Set Tab gives access to the following settings and features:

Samples
Allows you to select a subset of samples for testing.

Independent Variables
This box is informative only and shows the number of independent variables in the testing set.

Reset
Reverts to the total number of testing samples in your data.

Refresh
Refreshes the panel after changing the testing data set.

Change Data Set
Allows you to choose another testing set for evaluating the generalizing capabilities of your models.

Distribution
Allows you to visualize the distribution of values for each variable in the testing set. This plot shows a maximum of 250 points at a time and, therefore, for datasets with more than 250 samples you must move the scroll bar on the right of the table and APS will redraw the plot starting at the first visible row. Then, by placing the cursor over the plot, APS shows you the range used to draw the plot.

Scatter
Allows you to visualize the scatter plot of each independent variable in the testing set against the dependent variable. This plot shows a maximum of 250 points at a time and, therefore, for datasets with more than 250 samples you must move the scroll bar on the right of the table and APS will redraw the plot starting at the first visible row. Then, by placing the cursor over the plot, APS shows you the range used to draw the plot.
